CG Centrifugal Pump

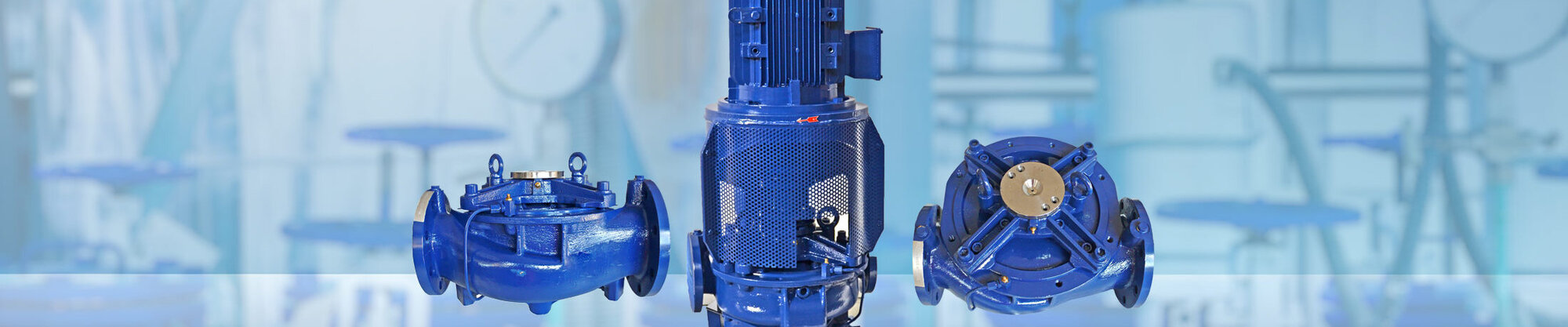

Nordan Marine supplies complete new pumps to all CG pump types: CGA 50/65, CGB 80/100, CGC 125/150, CGD 200/250 and CGE 300/350 which are suitable for Hamworthy, Kværner Eureka and Thune Eureka pumps. In addintion, Nordan Marine also supplies CG replacement pump with electric motor and CG bare shaft pump which is without motor, click here for detail information.

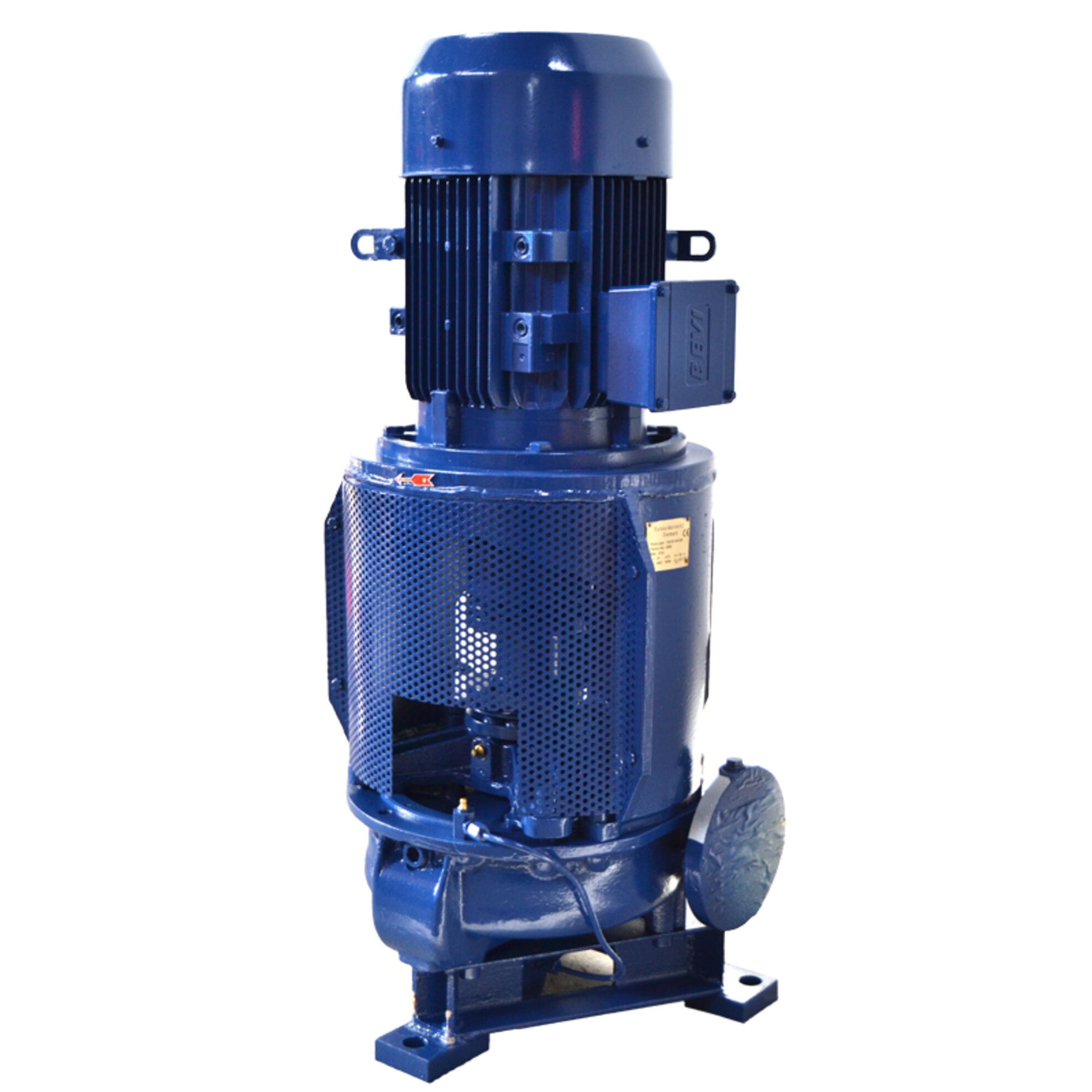

The CG pump is designed for a long and reliable service life and constructed as single stage vertical centrifugal pump. The logical assembly and minimum assembly parts make both inspection and maintenance easy to carry out, due to the pump are radically split and the complete rotating element can be dismantled independently of electric motor and piping connections.

Area of application: Transfer Bilge, Ballast, Cooling water, Fire and General Service.

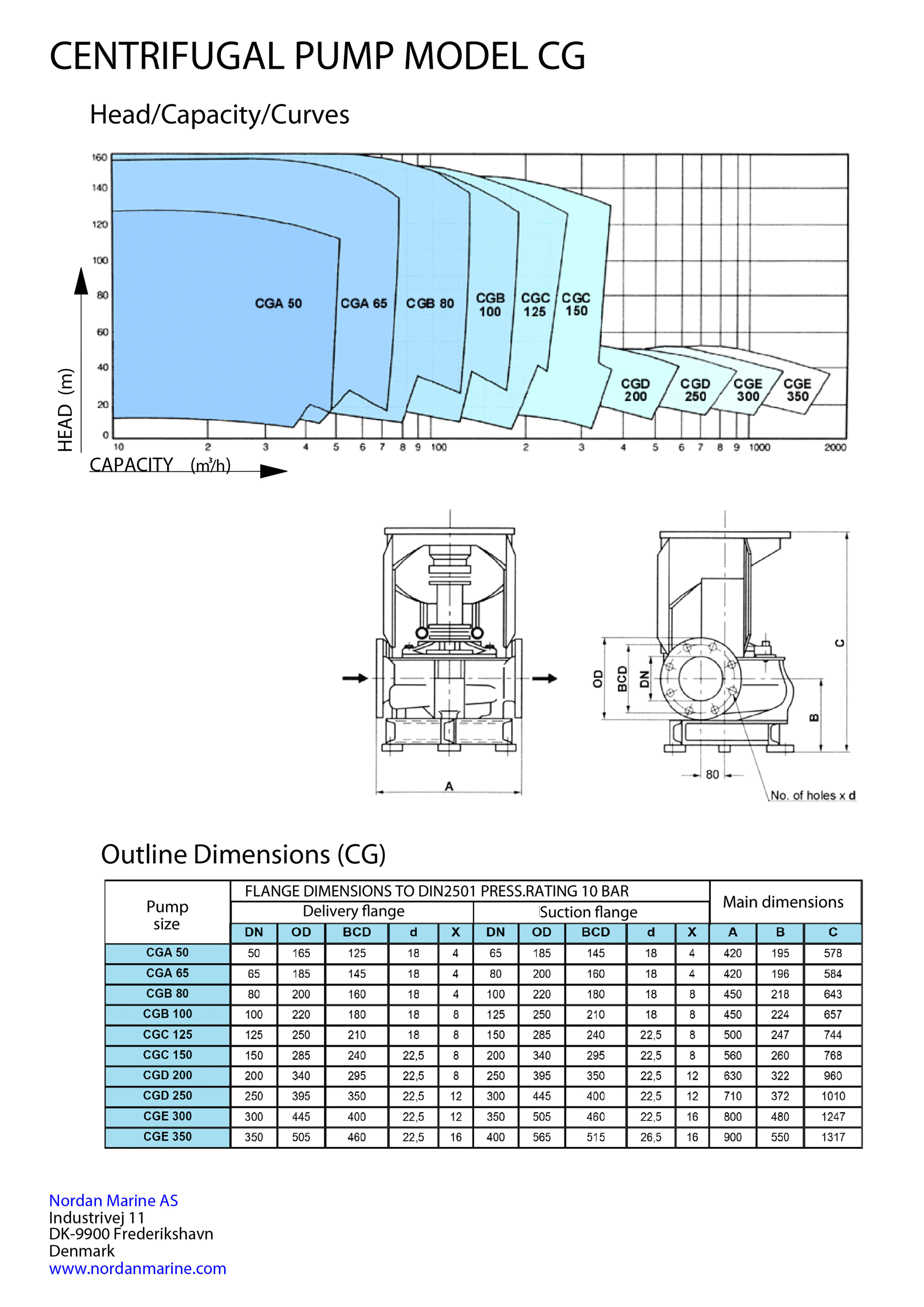

Performance Data:

Duty:
Capacity:
Pump total head:

Pump Material:

Sealing:
Bearling:
Coupling:
Pump Casing:
Impeller:
Shaft:

Sea Water and Fresh Water
From 10 to 1500 m3/h
From 10 to 140 mlc

Mechanical Seal
Ball Bearing
Coupling with spring discs and spacer
Bronze, NI-AL bronze and case iron
Bronze, NI-AL bronze and Stainless steel
Stainless steel
